Capacity
80 - 600
TPH
High-volume crushing range
Prime Jaw Crusher
BUILT FOR POWER. ENGINEERED FOR PERFORMANCE.
Jaw Crusher Machines engineered for high crushing efficiency and reliable performance in the most demanding mining conditions.
Jaw Crusher Machine Performance andKey Technical Details
Discover the technical specifications behind powerful, efficient and reliable crushing performance.
Feed Size
850
mm (Max)
Handles large rock feed
Motor Power
55 - 132
kW
Efficient drive options
Output Size
80 - 250
mm
Adjustable CSS setting
Application
MiningAggregatesConstructionRecycling & More
Built for Performance. Engineered for Results.
Prime Jaw Crusher ProductOverview
Prime Jaw Crusher is engineered for powerful crushing performance, high durability, and cost-effective operation. Built to handle tough and abrasive materials across mining, quarrying, and construction applications.
High Durability
Heavy-duty structure for long service life
High Efficiency
Optimized chamber design for more output
Low Maintenance
Easy access design reduces downtime
Cost Effective
Low operating cost high return on investment

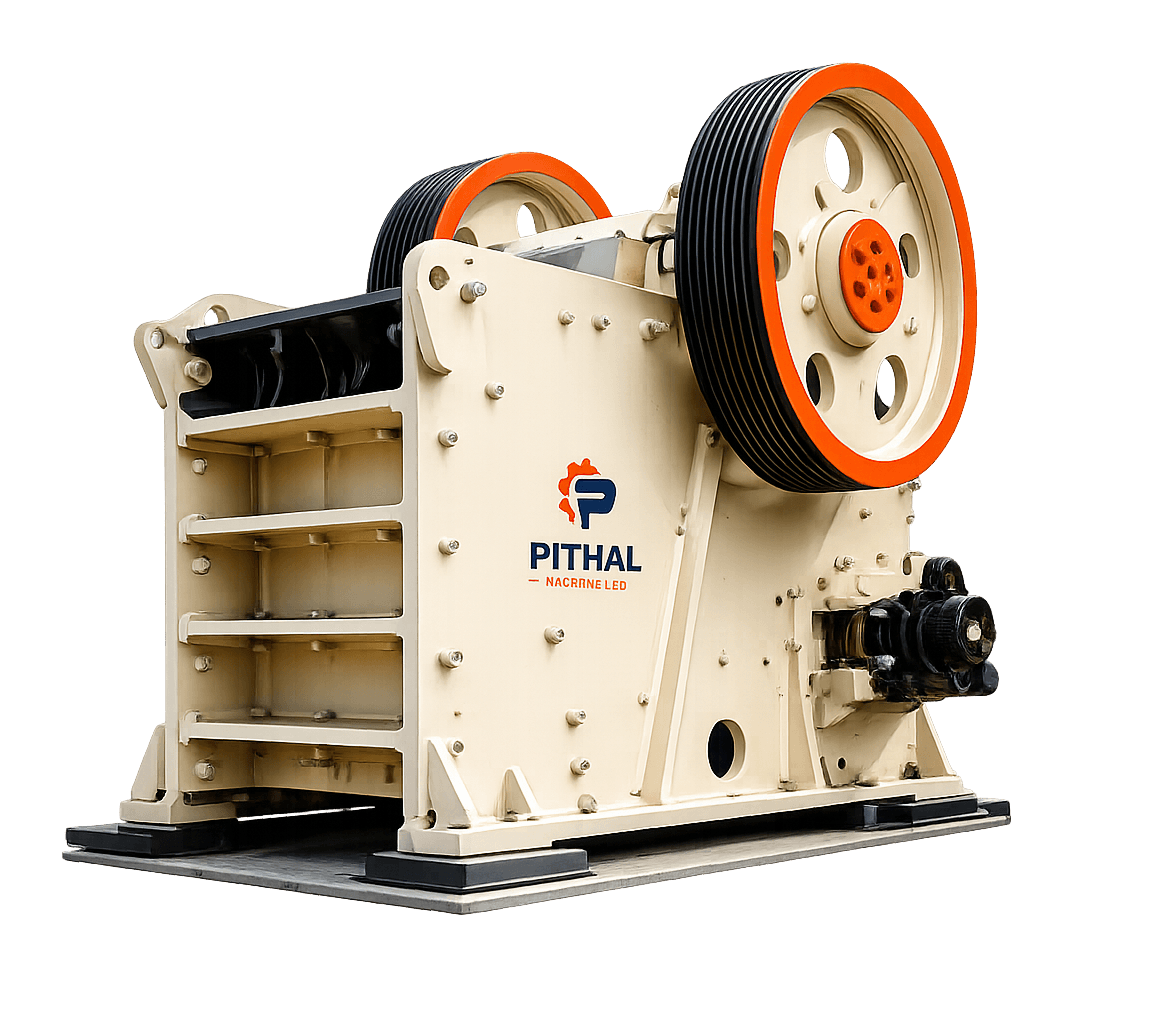

Feed Opening
Wide feed opening for large size rock material
Jaw Plates
High manganese steel for maximum wear resistance
Flywheel Guard
Heavy-duty flywheel with balanced safety enclosure
Adjustment System
Hydraulic adjustment for easy closed side setting control
Robust Frame
Reinforced structure for extra strength and stability
Key Features of Prime Jaw Crusher
Engineered for powerful and efficient crushing, the Prime Jaw Crusher combines robust construction with reliable performance for demanding industrial applications.
High Crushing Ratio
Optimized chamber design ensures maximum reduction ratio for higher output.
Low Maintenance
Easy access design and fewer moving parts reduce maintenance time and cost.
Heavy Duty Build
Rugged construction with premium materials for longer service life.
Fuel Efficiency
Engineered for optimal power utilization and lower operating costs.
Wear Resistant Parts
High quality manganese steel components for maximum durability.
PRIME SERIES SINGLE TOGGLE GREASE JAW CRUSHER
Discover the technical details behind the Prime Single Toggle Grease Jaw Crusher’s reliable performance.
Model | Feed Opening (W × D) | Maximum Feed Size | Recommended CSS Range | Capacity | Motor Power | Approx. Machine Weight | Lubrication |
|---|---|---|---|---|---|---|---|
| PMJ 30×24 | 750 × 600 mm | 500 mm | 80–150 mm | 80–150 TPH | 55 kW | 12,000 kg | Grease |
| PMJ 36×24 | 900 × 600 mm | 550 mm | 80–175 mm | 120–200 TPH | 75 kW | 17,000 kg | Grease |
| PMJ 36×30 | 900 × 750 mm | 650 mm | 90–200 mm | 150–300 TPH | 95 kW | 21,000 kg | Grease |
| PMJ 42×32 | 1067 × 813 mm | 750 mm | 100–225 mm | 200–450 TPH | 110 kW | 24,000 kg | Grease |
| PMJ 48×32 | 1219 × 813 mm | 850 mm | 100–250 mm | 300–600 TPH | 132 kW | 27,000 kg | Grease |
Note: Capacities vary depending on feed gradation, moisture content, rock hardness, and closed side setting.
Prime Jaw Crusher Applications
Engineered for reliable primary crushing across mining, quarrying, aggregate, and construction applications.
Jaw Crusher Working Process
A powerful crushing process designed to reduce hard materials efficiently and deliver consistent output with reliable performance.
Loading...
01
Material Input
Raw material is loaded into the hopper by dump trucks or loaders.
Loading...
02
Feed Hopper
Feeder hopper regulates the continuous and uniform flow of materials.
Loading...
03
Primary Crushing
Jaw crusher reduces large rocks into smaller, manageable sizes.
Loading...
04
Secondary Crushing
Further size reduction using cone crusher for consistent output.
Loading...
05
Screening
Vibrating screens separate material into different sizes.
Loading...
06
Conveyor Belt
Carries materials to the desired location.
Loading...
07
Final Output
High-quality aggregates ready for various applications.
PROCESS FLOW

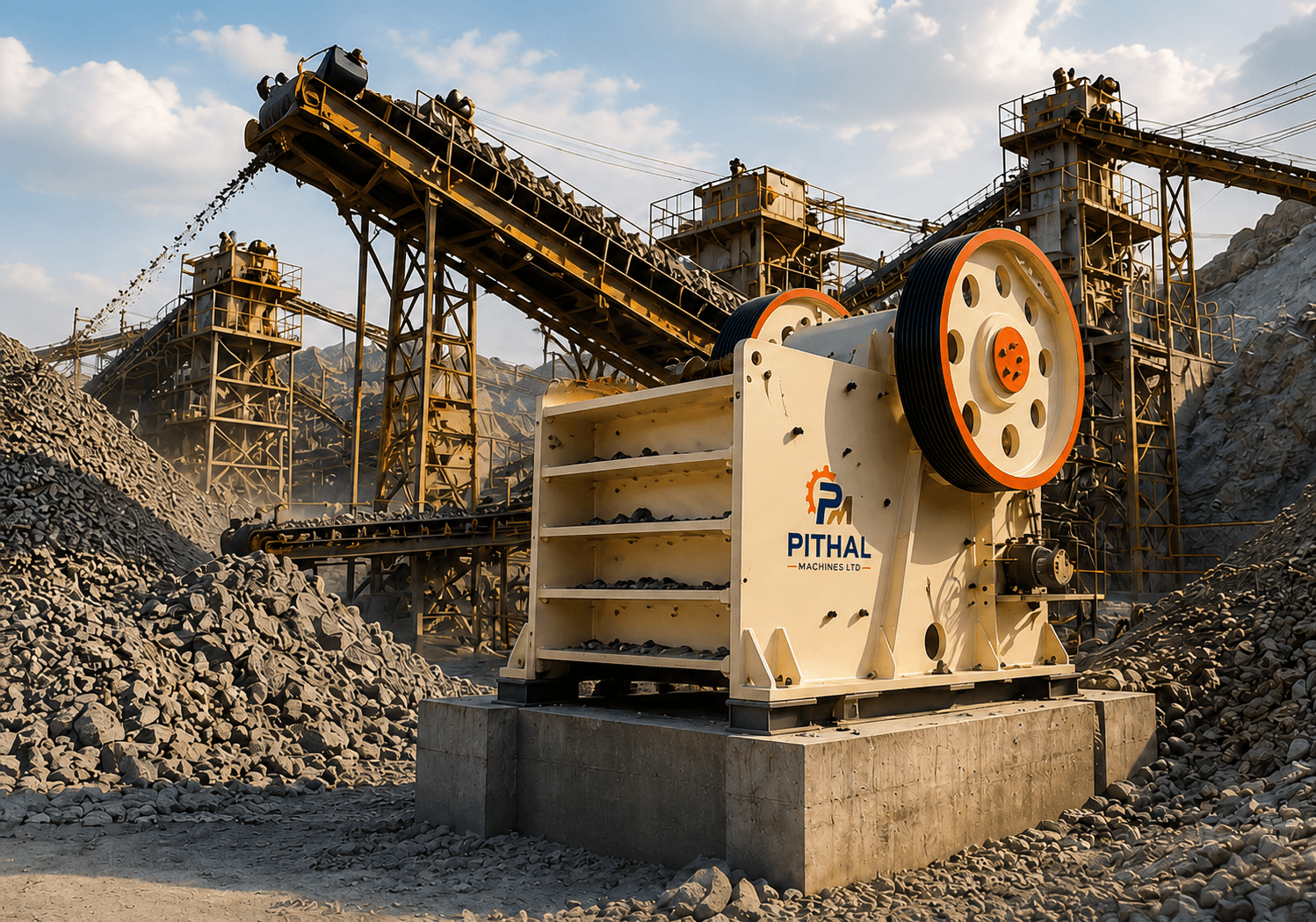

SEE PERFORMANCE.
IN ACTION.
Watch our jaw crusher in action and see how it delivers maximum crushing efficiency, reliability and consistent results.
Robust & Reliable
Built with heavy-duty components for continuous operation.
High Crushing Efficiency
Advanced crushing chamber design for higher output.
Low Maintenance
Easy access design for quick inspection and service.
Consistent Results
Uniform particle size with excellent shape.
0:00 / 1:45
FULL MACHINE DEMONSTRATION
Explore every detail of our jaw crusher performance.
Explore OurCrushing Equipment
Explore our range of reliable crushing solutions designed to meet diverse material processing needs and demanding industrial applications.
Prime Jaw Crushers
Robust and reliable crushers built for high capacity and maximum efficiency.
Prime UltraRock
Advanced crushing technology for extreme durability and performance.
Prime Bucket Crusher
Heavy-duty bucket systems for high-capacity material handling.
Prime Cone Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime VSI Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime Vibrating Screens
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Conveyor Systems
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Complete Plants
Custom-built complete crushing plants tailored to your specific needs and applications.
Prime Jaw Crushers
Robust and reliable crushers built for high capacity and maximum efficiency.
Prime UltraRock
Advanced crushing technology for extreme durability and performance.
Prime Bucket Crusher
Heavy-duty bucket systems for high-capacity material handling.
Prime Cone Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime VSI Crushers
High efficiency screening equipment for accurate separation and productivity.
Prime Vibrating Screens
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Conveyor Systems
Strong and consistent feeding solutions for smooth and uninterrupted operations.
Prime Complete Plants
Custom-built complete crushing plants tailored to your specific needs and applications.
LET'S BUILD THE RIGHT SOLUTION FOR YOU.
Share your requirements and our experts will recommend the best crushing solution tailored to your needs.
EXPERT CONSULTATION
Get the right solution from industry experts.
TAILORED RECOMMENDATION
Custom advice based on your material and goals.
OPTIMIZED PERFORMANCE
Maximize productivity and reduce downtime.
END TO END SUPPORT
From selection to after-sales service.
Need immediate assistance?
Talk to our crushing experts today.
Call Us Now+91 98875 37129
Request a quote
REQUEST EXPERT CONSULTATION
Fill in your requirements and we'll get back to you with the best solution.
Prime Jaw CrusherDownloads
Access detailed brochures, technical specifications and product manuals to explore the Prime Jaw Crusher’s features, performance and capabilities.
PRODUCT BROCHURE
Comprehensive overview of features, benefits and applications.
TECHNICAL DATASHEET
Detailed technical specifications and performance data.
OPERATION & MAINTENANCE MANUAL
Step-by-step guide for safe operation, maintenance and best practices.
TRUSTED INFORMATION
Verified and updated technical content.
EASY ACCESS
Instant downloads anytime, anywhere.
MAKE INFORMED DECISIONS
All the data you need to choose the right equipment.
EXPERT SUPPORT
Our team is here to help with any questions.
CAN'T FIND WHAT YOU'RE LOOKING FOR?
Contact our team for customized documents or additional information.
Prime Jaw CrusherFAQs
A Prime Jaw Crusher Machine is a heavy-duty primary crushing machine designed to reduce large rocks and hard materials into smaller, manageable sizes. It is commonly used in mining, quarrying, aggregate production and construction applications.
The Prime Jaw Crusher is designed to handle hard and abrasive materials such as rocks, stones and various mineral materials. The suitable material depends on the machine configuration and application requirements.
The capacity can vary depending on the selected model and configuration. Prime Jaw Crusher Machines can be configured for different production requirements, so the appropriate model should be selected based on feed material, feed size and required output.
Prime Jaw Crushers are commonly used in mining, quarrying, aggregate production, construction, cement and other industries that require efficient primary crushing.
The machine uses compressive force between a fixed jaw and a moving jaw to crush incoming material. Large rocks are fed through the crusher, reduced in size and discharged through the bottom of the crushing chamber.
Key benefits include efficient primary crushing, robust construction, reliable performance, reduced maintenance requirements and suitability for demanding industrial applications.
The right machine depends on factors such as material type, feed size, required capacity, desired output size and operating conditions. Pithal Machine can help recommend a suitable configuration based on your specific requirements.
The price depends on the model, capacity, configuration and application requirements. Contact Pithal Machine with your crushing requirements to get a suitable machine recommendation and quotation.
You can contact Pithal Machine directly through the enquiry form or contact details provided on the website. Share your required capacity, material type, feed size and application to receive a suitable recommendation and quotation.
Prime Jaw Crusher Machine for Efficient Primary Crushing
The Prime Jaw Crusher Machine is designed for efficient primary crushing of hard, abrasive, and large-sized materials. With a robust construction and reliable crushing mechanism, it is suitable for demanding applications in mining, quarrying, construction, aggregate production, and material processing.
The crusher is designed to handle challenging feed materials while maintaining consistent crushing performance. Its heavy-duty design makes it a dependable solution for industries that require continuous crushing and efficient material reduction.
Why Choose Prime Jaw Crusher Machine
Choosing the right jaw crusher can have a direct impact on productivity, operating costs, and overall plant performance. The Prime Jaw Crusher is engineered to provide a combination of crushing efficiency, durability, and dependable operation.
Its strong construction allows the machine to perform effectively in demanding working environments, while its practical design supports easier operation and maintenance. This makes the Prime Jaw Crusher a suitable choice for businesses looking for reliable primary crushing equipment.
Jaw Crusher Machine for Mining and Quarrying
Mining and quarrying operations often require equipment capable of processing hard and abrasive materials. The Prime Jaw Crusher Machine is designed for primary crushing applications where large feed material needs to be reduced to a manageable size for further processing.
Its robust construction and powerful crushing action make it suitable for processing materials such as rocks, aggregates and other hard materials used in industrial applications.
Efficient Material Reduction
The primary function of a jaw crusher is to reduce large-sized feed material into smaller and more manageable pieces. The Jaw Crusher uses a powerful jaw crushing mechanism to apply compressive force to the material, helping achieve efficient size reduction.
The machine can be integrated into a wider crushing plant where crushed material is further processed using secondary and tertiary crushing equipment.
Built for Demanding Industrial Applications
Our Jaw Crusher is designed for industries where reliable equipment performance is essential. From mining and quarrying to aggregate production and construction material processing, the machine can support a wide range of primary crushing requirements.
Its heavy-duty design helps provide dependable operation under demanding conditions while supporting consistent production requirements.
Reliable Jaw Crusher Machine for Long-Term Operation
Durability is an important consideration when selecting industrial crushing equipment. Pithal Jaw Crusher is manufactured with a focus on structural strength, reliable component and long-term operational performance.
With appropriate maintenance and operating practices, the machine can provide dependable service while helping businesses maintain efficient crushing operations.
Get the Right Jaw Crusher Machine for Your Application
Every crushing operation has different requirements based on material type, feed size, required output and production capacity. Selecting the appropriate jaw crusher configuration is therefore important for achieving efficient plant performance.
Pithal Machine can help you identify a suitable Prime Jaw Crusher configuration based on your application and crushing requirements. Contact our team to discuss your requirements and get detailed technical information and pricing.
